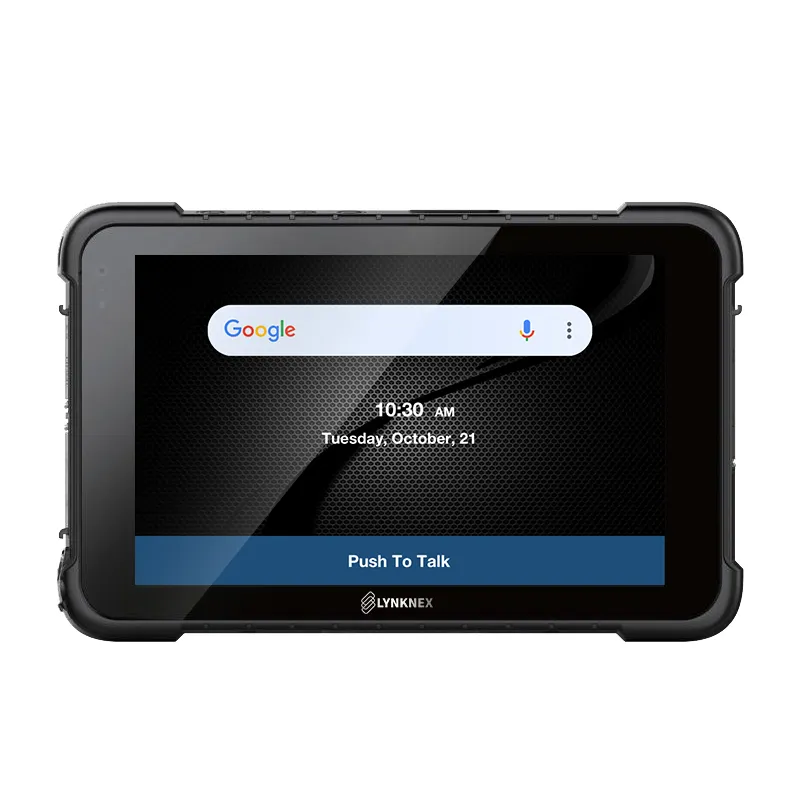

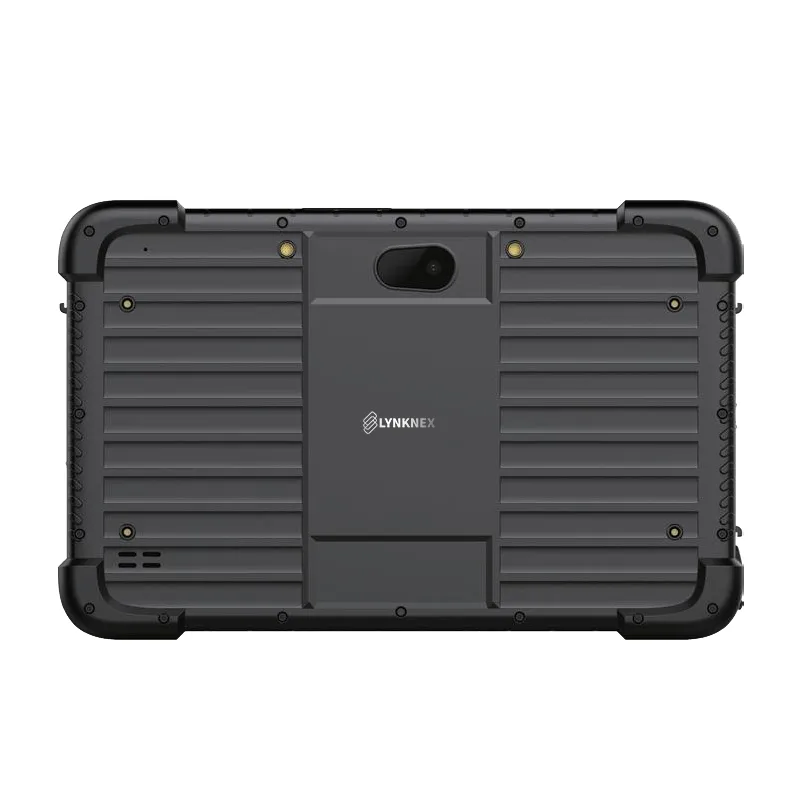

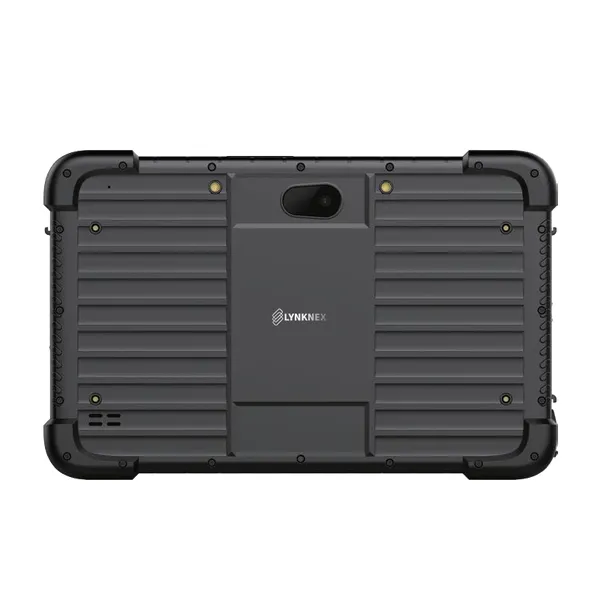

T3 Smart Industrial Rugged Tablet

Communication Diversity

3G/LTE, WiFi, Bluetooth, NFC supported



Long-lasting Battery

Built-in 8500mAh battery, 8hrs in 1080P video playing endurance



Rugged Design

IP67 high protection level, in accordance with MIL-STD-810G



Front & Rear Cameras

Rear 13MP, Front 5MP, easy to collect image and video information



Integrated barcode scanner (Optional)

MOTO SE655E100R 1D and Zebra SE2707 2D module supported

System
Processor
Qualcomm (Octa Core), 2.0 GHz
Memory4GB LPDDR3
Storage64GB
Operating SystemAndroid 9.0
Communication
Frequency

GSM: B2, B3, B5, B8

WCDMA: B2, B5, B8

LTE: B2, B4, B5, B7, B8, B17, B38, B39, B40, B41

WiFi802.11 a/b/g/n/ac
BluetoothBT4.1(BLE)
NFCSupport
GPSGPS, Glonass
Display and Camera
LCD8" IPS 16:10, 800*1280
Touch Panel5 points Capacitive, G+G
CameraFront 5.0MP, Rear 13.0 MP
Size & Weight
Dimension228*145*16.5 (mm)
Weight715g
Interface
I/O

HDMI 1.4a x1

Type C x1

USB 2.0 x1

SIM Card x1

TF Card x1

12 Pogo Pin x1

3.5mm standard earphone jack x1

3.5mm DC jack x1

Power

Input: AC 100V~240V, 50Hz/60Hz,

Output: DC 5V/3A

Reliability
IP GradeIP67
Operating Temperature-20°C~55°C
Storage Temperature-30°C~70°C
Humidity95% Non-Condensing
